Robot Arm Palletizer

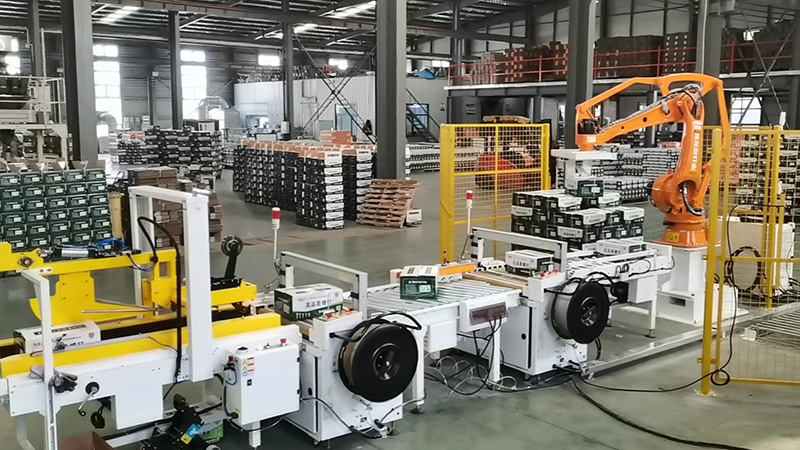

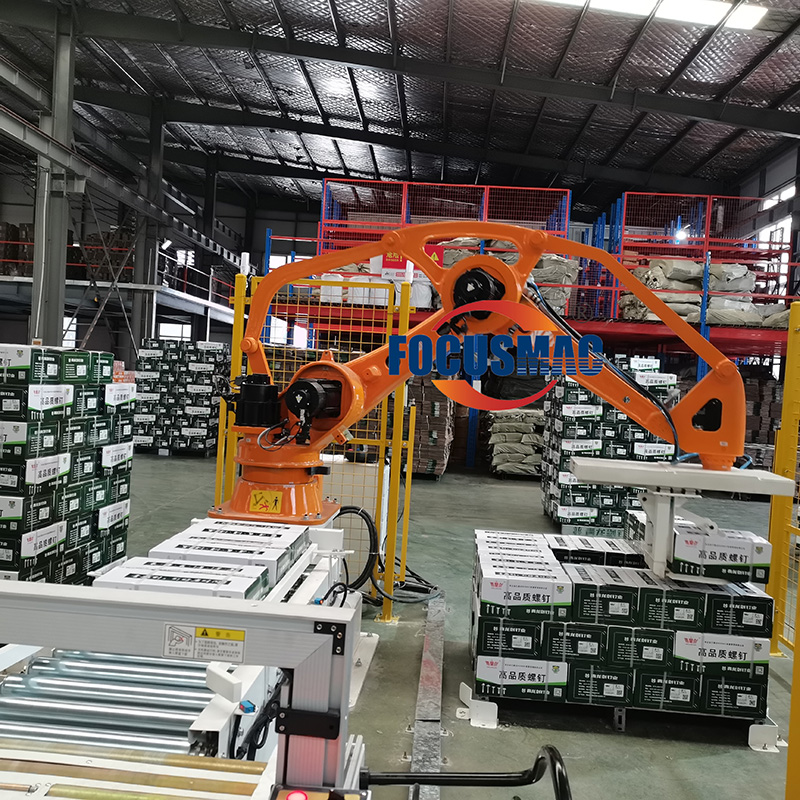

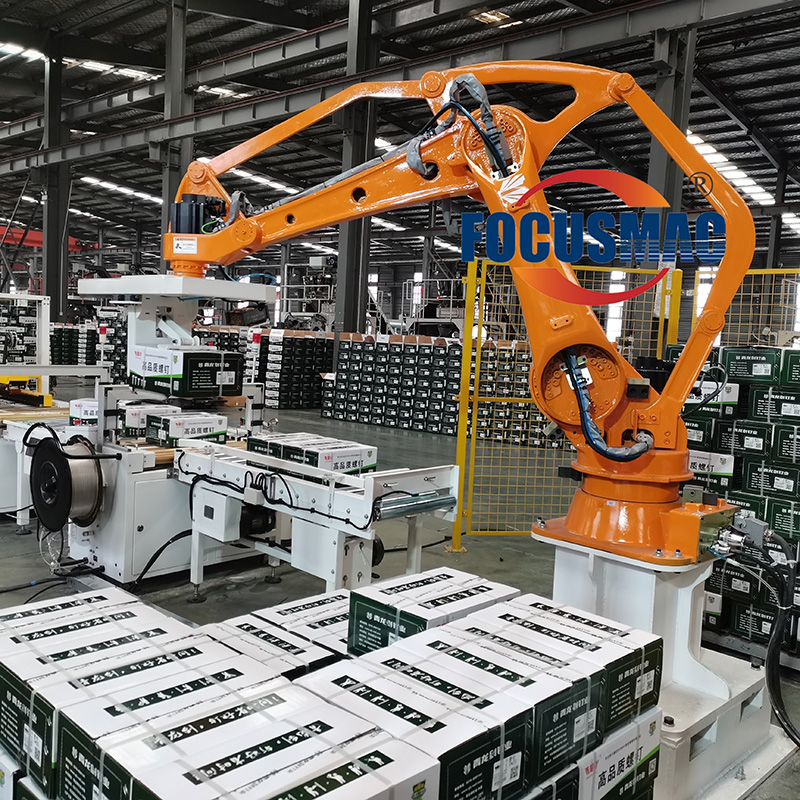

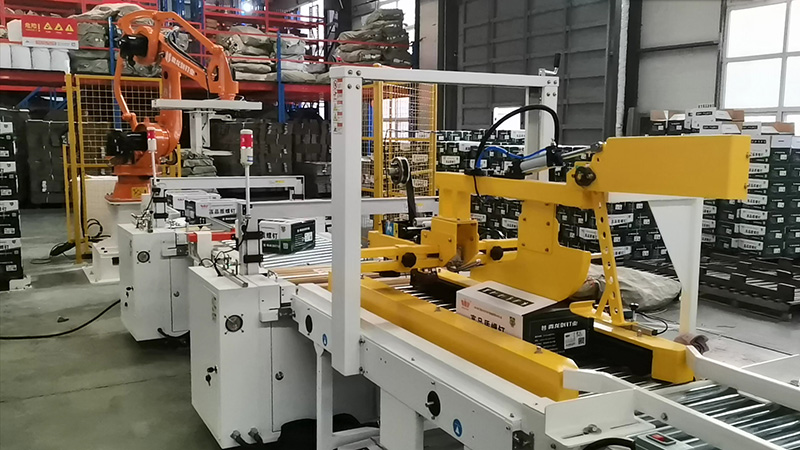

Robot Arm Palletizer, automatic robot arm palletizing system is including arm palletizer, carton bag feeding roller conveyor and protected fences. Its significance lies in its ability to streamline processes, optimize space, and enhance overall productivity within manufacturing and warehousing environments.

Technical Parameters:

Model	Robot Arm Palletizer
Speed	4-10 carton/bag/minute
Capacity	＜50kg/time
Power Supply	AC220V, 50Hz, 2KW
Gas Consumption	0.4--0.6 Mpa, 400NL/ Min
Touch Screen	7 inches



Features:
1. It can clamp up to 50kg material each time.
2. It is suitable for cartons, bags and barrels with different clamping devices. The standard clamping device for carton sizes:
Length:250-600mm
Width:200-360mm
Height: 50-240mm
3.The maximum dimension is about L1400 xW1200 xH1600mm (including pallet height)after palletized. The total height does not exceed 1600mm, and the number of layers is not limited.

Our Service
· We will provide the best service in the sale.
· We will ensure high quality to meet your any requirements.
· Professional engineers can design any special solutions for you.
· We assure all the machines one year to maintain good quality and high efficient performance, and provide life-long maintenance services.
· We provide engineers on-site installation and training services.

FQA
1.For providing exact quote and solution, what’s needed?
(1) What’s the carton size?
(2) Do you have any other specific requirements?
2.What's the delivery time?
For standard machine, it takes about 25-35 days for production, and for customized projects need to be negotiated.
3.What about the installation and commission?
We will provide manual and video to show you how to install the machine. If needed, we can also ask our engineer to buyer’s factory to install the machine and train the workers there. But the buyer should pay for the round-ticket, visa charge, food and accommodation.
4.What about after-sales service?
The machine have one year warranty and lifelong technical support. We will offer the broken spare parts for free within warranty period.
